Web Enabled Serial Controller

Series: Control System
Model: CNT-IP-2
  • Embedded Software Accessible from any PC, Smart Phone, or Tablet
  • RS232 pass-thru or dual-port control of devices
  • Control other devices via Telnet (IP)
  • Task Scheduling
  • Real-Time Clock with Super Capacitor backup
Project List
Product Info
Tech Specs
Related Products

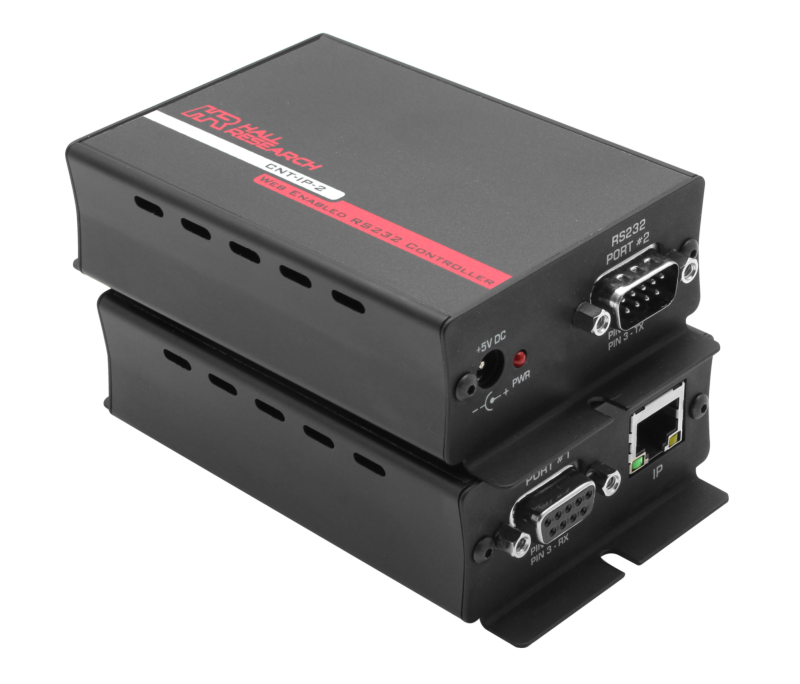

The CNT-IP-2 is the latest addition to Hall Research’s Switch-CatTM room control product line. It offers true flexibility in access and control making it ideal for K-12 classrooms, conference rooms and more. The CNT-IP-2 devices allow for up to 1 or more RS232 devices to be remotely controlled across a compatible LAN network using a web browser. The CNT-IP-2 consists of a compact modular enclosure with (2) RS232 ports, (1) IP RJ-45 network port and a +5 vDC power connector. All models come with the required power supply. The CNT-IP-2 controller also has the ability to route the RS232 signals across a Telnet IP connection on IP Port# 23 of the devices assigned IP address. All configuration and control software is embedded in the device and served over HTTP to a browser which means you can access and control the device from a PC, Mac, smart phone, or tablet. Custom programmable commands offer advanced control of the device and 3rd party equipment. Software features include embedded device control, task scheduling and automation and more.
  • Embedded Software Accessible from any PC, Smart Phone, or Tablet
  • RS232 pass-thru or dual-port control of devices
  • Control other devices via Telnet (IP)
  • Task Scheduling
  • Real-Time Clock with Super Capacitor backup
  • Custom Webpages are available
  • Programmed via browser
